Introduction

A centrifugal pump is a mechanical device used to transport fluids by converting rotational energy from a motor into hydrodynamic energy of the fluid. This process is facilitated by an impeller that rotates at high speed to create a pressure difference, enabling the fluid to move from the inlet to the outlet.

This article provides an in-depth analysis of centrifugal pumps, including their working principles, classification, materials used, industry standards, applications, auxiliary components, safety considerations, and engineering calculations.

---

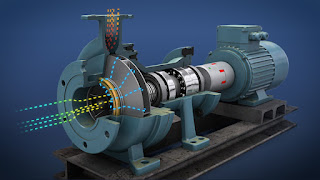

Working Principle of Centrifugal Pumps

Centrifugal pumps operate based on Bernoulli’s principle. The impeller, which consists of curved vanes, rotates within a casing, drawing fluid into the eye of the impeller and accelerating it outward. The kinetic energy imparted by the impeller is then converted into pressure energy in the volute or diffuser casing. The main operational stages include:

1. Suction Stage: Fluid enters through the inlet due to the pressure differential.

2. Acceleration Stage: The rotating impeller increases the velocity of the fluid.

3. Discharge Stage: The fluid exits through the outlet at a higher pressure.

---

Types of Centrifugal Pumps

Based on Impeller Stages:

• Single-Stage Pumps: Have a single impeller and are ideal for low-pressure applications.

• Two-Stage Pumps: Utilize two impellers to achieve higher pressure.

• Multi-Stage Pumps: Incorporate multiple impellers in series for high-pressure applications.

Based on Flow Type:

• Radial Flow Pumps: The fluid moves perpendicular to the shaft, providing high head.

• Axial Flow Pumps: The fluid moves parallel to the shaft, suitable for high flow rates.

• Mixed Flow Pumps: A combination of radial and axial flows for balanced performance.

---

Materials Used in Centrifugal Pumps

Centrifugal pumps are manufactured using various materials depending on the application:

• Cast Iron: Used for general water applications.

• Stainless Steel: Ideal for corrosive fluids and food-grade applications.

• Bronze: Used in marine applications.

• Polypropylene & PVDF: Chemical-resistant materials for aggressive fluids.

---

Industry Standards and Certifications

Centrifugal pumps must comply with international standards, ensuring reliability and safety:

1. ANSI (American National Standards Institute): Governs pumps for general industry applications.

2. API (American Petroleum Institute): Defines standards for pumps used in oil and gas industries.

3. ISO 5199 & ISO 2858: International standards for performance and dimensions.

4. Hydraulic Institute Standards: Guidelines for pump efficiency and performance testing.

---

Applications in Various Industries

Centrifugal pumps are widely used across different sectors:

• Water Treatment Plants: For pumping clean and wastewater.

• Oil & Gas Industry: API-compliant pumps for handling hydrocarbons.

• Chemical Processing: Resistant materials for hazardous chemicals.

• Food & Beverage Industry: Stainless steel pumps for hygienic operations.

• HVAC Systems: For circulating water in cooling and heating systems.

---

Auxiliary Components in Centrifugal Pump Systems

To ensure optimal performance, centrifugal pumps work alongside auxiliary components such as:

• Bearings and Seals: To prevent leaks and reduce friction.

• Temperature & Pressure Sensors: To monitor operating conditions.

• Flow Meters: To measure and control the flow rate.

• Valves: Including check valves, pressure relief valves, and control valves.

• Suction and Discharge Piping: Designed for minimum friction loss.

---

Safety Considerations and Operational Standards

Ensuring safe operation of centrifugal pumps involves compliance with:

• OSHA (Occupational Safety and Health Administration) regulations.

• NFPA (National Fire Protection Association) guidelines for fire pumps.

• ATEX Certification for pumps operating in explosive atmospheres.

• Proper Ventilation: To prevent overheating and vapor lock.

• Vibration Monitoring: To detect mechanical issues early.

---

Basic Engineering Calculations

To determine the correct pump for an application, essential calculations include:

1. Pump Power (P): $P (kW) = \frac{Q (m^3/s) \times H (m) \times \gamma (kN/m^3)}{\eta}$ Where:

   • Q = Flow rate

   • H = Head

   • γ = Specific weight of the fluid

   • η = Efficiency

2. NPSH (Net Positive Suction Head): $NPSH_{available} = h_{atm} - h_{vap} - h_{friction}$

   • Ensuring NPSH_available > NPSH_required prevents cavitation.

3. Affinity Laws: For scaling pump performance: $Q_2 = Q_1 \times \frac{N_2}{N_1}$ $H_2 = H_1 \times \left( \frac{N_2}{N_1} \right)^2$ $P_2 = P_1 \times \left( \frac{N_2}{N_1} \right)^3$

   • Where N is the rotational speed.

---

Advantages of Centrifugal Pumps

1. Low Maintenance Costs: Fewer moving parts reduce wear and tear.

2. Energy Efficiency: Optimized designs minimize power consumption.

3. Versatile Applications: Handles various fluids across industries.

4. Corrosion Resistance: Materials selected based on application.

5. Smooth Flow: Reduces turbulence and ensures steady fluid movement.

6. Availability of Spare Parts: Common components are readily accessible.

---

Conclusion

Centrifugal pumps play a critical role in industrial and domestic fluid transportation. Understanding their working principles, classifications, materials, safety standards, and auxiliary components ensures optimal selection and operation. Proper engineering calculations and adherence to international standards enhance efficiency, safety, and reliability in various applications.
